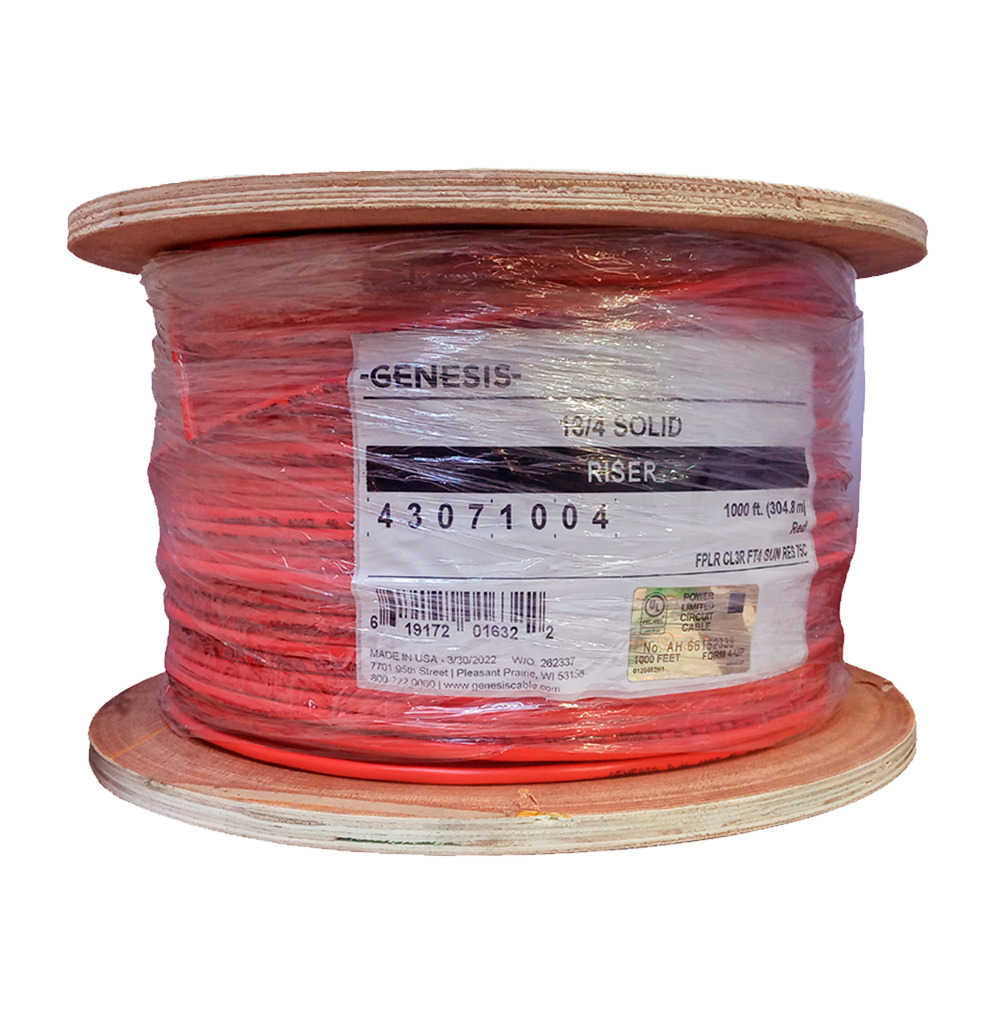

Cable contra incendio GENESIS FPLR 4X18 AWG UL
- 18 AWG 4 Solid Conductors
Ratings FPLR, CL3R, FT4, Sunlight Resistant
Approvals UL Listed
Construction
Conductor 18 AWG Solid Bare Copper
Conductor Count 4
Insulation Polypropylene (0.006″ nom.)
Insulation Colors Black, Red, Green, Yellow
Lay Length 6.00″ nom.
Shielding N/A
Rip Cord Yes
Jacket PVC (0.015 » nom.)
Overall Diameter 0.159″ nom.
Print Legend GENESIS P/N 4307 4C 18AWG E175105 (UL) FPLR OR CL3R FT4 SUN RES 75C (RoHS)
W/O# XXXXXX-XXXXXXX XXXXFT A B C D E F 1 2 3 4 5 6 7 8 9
Properties
Operating Voltage 300 Volts max.
DC Resistance 6.52 Ohms/1000′ at 20°C
Capacitance 22.8 pF/ft. nom.
Impedance 66 Ohms nom.
Temperature -20°C to 75°C
Flame Rating UL 1666 (Riser); CSA C22.2 No. 2556 (FT4)
RoHS Compliant Yes
